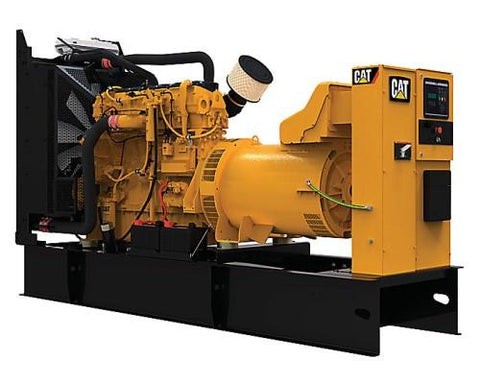

CAT® 275 kVA - DE300E0

  • Sale
  • $38,816.79
  • Regular price $40,859.77


Note : Please Consider the following :-

  • Delivery Incoterm : Ex Works.
  • Duty and Taxes excluded.
  • Freight estimates to Port of Entry available upon request.

Please click on the request quote button below to get the final price.




  • Type Of Engine: Four-Stroke, Diesel Fuel
  • Application: Power Generation, Prime Power.
  • Cylinders Arrangement: Inline Type
  • No. Of Cylinders: 6 Cylinder
  • No. Of Strokes: Four Strokes
  • Bore: 112.00 mm
  • Stroke:149.00mm
  • Displacement:8.8 L
  • Induction:Air-to-Air After-cooled
  • Compression Ratio:16.1: 1
  • Genset Output:275KVA - 220eKW
  • Revolutions Per Minute:1500 RPM
  • Rating:275kVA , 220eKw @ 0.8 P.F.
  • Voltage:400 Volts
  • Frequency:50 Hz
  • Speed:1500 RPM
  • Insulation:Class "H"
  • No. of Bearing:Single Bearing
  • Excitation:Self-Excited
  • Over Speed:150% of Synchronous speed
  • Wave Form:Less than 2% deviation
  • Voltage Regulator:Integrated voltage regulator
  • Voltage Regulation:Less than ± 0.5% (steady state)
