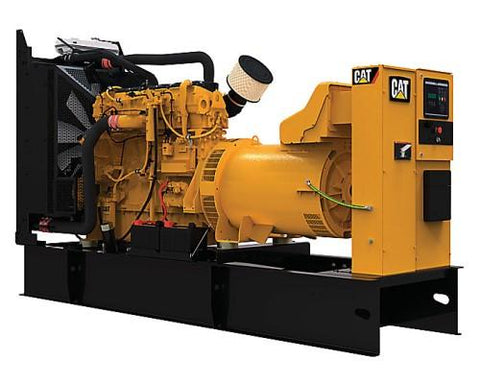

CAT® 350 kVA - DE400E0

  • Sale
  • $45,144.53
  • Regular price $47,520.56


Note : Please Consider the following :-

  • Delivery Incoterm : Ex Works.
  • Duty and Taxes excluded.
  • Freight estimates to Port of Entry available upon request.

Please click on the request quote button below to get the final price.




  • Type Of Engine: Four-Stroke, Diesel Fuel
  • Application: Power Generation, Prime Power.
  • Cylinders Arrangement: Inline Type
  • No. Of Cylinders: 6 Cylinder
  • No. Of Strokes: Four Strokes
  • Bore: 130.00 mm
  • Stroke:157.00mm
  • Displacement:12.50 L
  • Induction:Air-to-Air After-cooled
  • Compression Ratio:16.3: 1
  • Genset Output:350KVA - 280eKW
  • Revolutions Per Minute:1500 RPM
  • Rating:350kVA , 280eKw @ 0.8 P.F.
  • Voltage:400 Volts
  • Frequency:50 Hz
  • Speed:1500 RPM
  • Insulation:Class "H"
  • No. of Bearing:Single Bearing
  • Excitation:Self-Excited
  • Over Speed:150% of Synchronous speed
  • Wave Form:Less than 2% deviation
  • Voltage Regulator:Single phase sensing Voltage Regulator
  • Voltage Regulation:Less than ± 1% (steady state)
