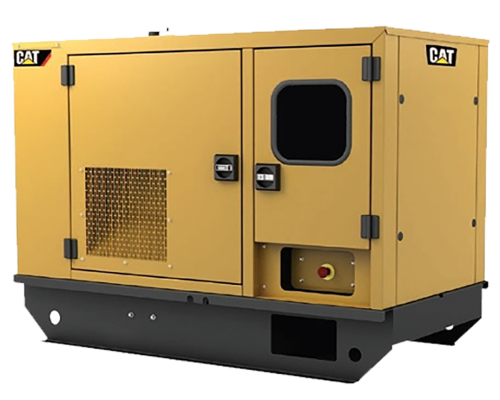

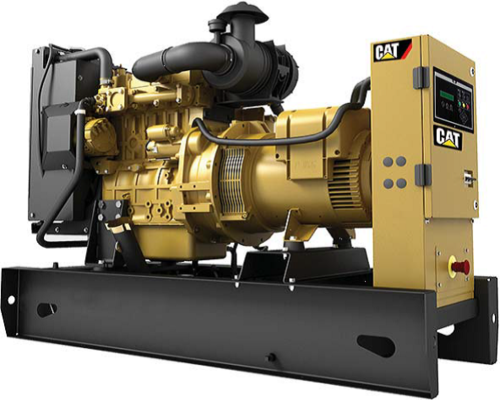

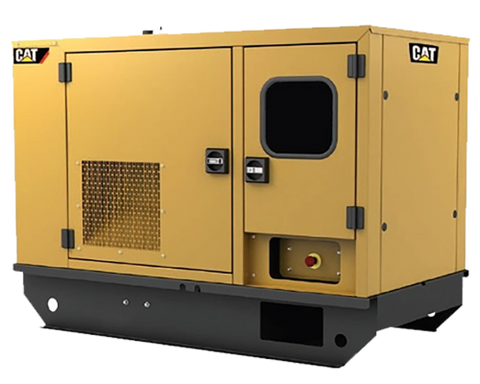

CAT® 8 kVA - DE9.5E3

  • Sale
  • Regular price


Note : Please Consider the following :-

  • Delivery Incoterm : Ex Works.
  • Duty and Taxes excluded.
  • Freight estimates to Port of Entry available upon request.

Please click on the request quote button below to get the final price.



  • Type Of Engine: Four-Stroke, Diesel Fuel
  • Application: Power Generation, Prime Power.
  • Cylinders Arrangement: Inline Type
  • No. Of Cylinders: 3 Cylinder
  • No. Of Strokes: Four Strokes
  • Bore: 77 mm
  • Stroke:81 mm
  • Displacement:1.1 L
  • Induction:Naturally Aspirated
  • Compression Ratio:0.959027777777778
  • Genset Output:8.5 KVA - 6.8 ekW
  • Revolutions Per Minute:1500 RPM
  • Rating:8.5 kVA , 6.8 ekW @ 0.8 P.F.
  • Voltage:400 Volts
  • Frequency:50 Hz
  • Speed:1500 RPM
  • Insulation:Class "H"
  • No. of Bearing:Single Bearing
  • Excitation:Self-Excited
  • Over Speed:2250 RPM
  • Wave Form:0.02
  • Voltage Regulator:R220
  • Voltage Regulation:± 1% (steady state)
